Successfully integrating a power inverter into your campervan or RV significantly enhances your off-grid capabilities, providing access to 120V AC power for essential appliances and electronics. However, improper installation can lead to electrical hazards and system malfunctions. Therefore, meticulous planning and execution are paramount. Before commencing any work, disconnect the vehicle’s battery to prevent accidental short circuits. This is a crucial safety precaution that should never be overlooked. Furthermore, carefully assess your power requirements; determine the total wattage of all devices you intend to run concurrently to select an appropriately sized inverter. Underestimating your needs can result in an overloaded system, potentially damaging the inverter and other components. Conversely, overestimating your needs may lead to unnecessary expense. Thorough planning also involves identifying a suitable location for the inverter within your camper. Consider factors like ventilation to dissipate heat generated during operation, proximity to the battery for efficient wiring, and accessibility for future maintenance. Finally, before initiating any physical installation, carefully review the inverter’s manufacturer’s instructions. These detailed guidelines will provide specific steps and safety precautions tailored to your specific model. Adhering to these instructions will ensure optimal performance and longevity of your new system.
Following careful planning, the installation process itself requires precision and attention to detail. First, securely mount the inverter in the chosen location, ensuring adequate ventilation. This often involves using appropriate mounting brackets and fasteners, which will be dependent upon both the inverter and camper construction. Subsequently, connect the positive (+) and negative (-) wires from the battery to the inverter’s DC input terminals, utilizing appropriately sized, heavy-gauge wiring. Remember to adhere to polarity; incorrect connection will damage the inverter and possibly cause a fire. Moreover, consider incorporating an inline fuse on the positive wire close to the battery to protect the circuit from overloads and short circuits. This protective measure is crucial for both system safety and longevity. Next, connect the inverter’s AC output to a properly grounded circuit breaker panel. This panel serves as a central distribution point for your AC power, ensuring safe and controlled power distribution throughout the camper. In addition to the circuit breaker, it’s highly recommended to also include a ground fault circuit interrupter (GFCI) outlet for safety, especially in areas prone to moisture such as kitchens and bathrooms. After all connections are made, thoroughly check for any loose wires or connections. A loose wire could lead to arcing and pose a significant fire hazard. Finally, carefully test the system by gradually powering on your appliances to ensure everything functions correctly.
Once the installation is complete, thorough testing and ongoing maintenance are vital to ensure the longevity and safe operation of your power inverter. Begin by individually testing each outlet to confirm proper voltage output and functionality. Gradually increase the load by switching on more appliances simultaneously, always staying within the inverter’s rated capacity. Observe the inverter’s temperature during operation; excessive heat could indicate an overload or a ventilation problem. Furthermore, regular visual inspections for any signs of loose wiring, corrosion, or damage are crucial for preventative maintenance. Addressing any issues promptly will prevent potential problems from escalating. In addition to visual inspections, consider periodically checking the fuse, ensuring it hasn’t blown. A blown fuse indicates a potential short circuit or overload, requiring investigation and rectification. Remember, the inverter’s performance can be influenced by temperature and environmental conditions. Therefore, optimal functioning may require adjusting the cooling strategy, such as adding additional ventilation. Finally, consult the manufacturer’s maintenance guidelines for specific recommendations tailored to your inverter model. By adhering to these guidelines, you can ensure the continued safe and reliable performance of your camper’s power system.
Assessing Your Camper’s Power Needs and Inverter Requirements
Assessing Your Camper’s Power Needs
Before you even think about purchasing a power inverter for your camper, you need a clear understanding of your energy demands. This involves meticulously listing every device you intend to run off the inverter. Simply guessing won’t cut it; inaccurate estimations could lead to an underpowered inverter (leaving you with insufficient juice) or an overpowered (and unnecessarily expensive) one.
Start by making a comprehensive inventory of all the appliances and electronics you’ll be using. This includes obvious items like refrigerators, lights, and laptops, but also consider less obvious power consumers such as fans, CPAP machines, charging ports, and even small electronics like electric toothbrushes. For each item, carefully note its wattage (W) rating. This information is usually found on a label on the device itself or in its user manual. If the label only lists amps (A) and voltage (V), you can calculate wattage using the formula: Watts (W) = Volts (V) x Amps (A).
Once you have the wattage for each device, it’s crucial to differentiate between continuous and surge power. The wattage listed on a device is usually its *continuous* power draw—the amount of electricity it uses while operating normally. However, many appliances, especially those with motors (like refrigerators or air conditioners), require a much higher *surge* power for a brief period when they initially start up. Ignoring surge power can lead to a frustrating experience where your inverter shuts down every time you turn on a demanding appliance.
To account for surge power, add a safety margin to your calculations. A general rule of thumb is to multiply the wattage of each appliance by 1.5 to 2 to account for the surge. This gives you a more realistic estimate of the peak power demand placed on the inverter. For example, if a refrigerator has a continuous wattage of 100W, you might add a safety margin, taking its peak power draw as 150W to 200W.
Understanding Power Consumption
To illustrate, let’s look at a sample power consumption table. Remember, these are example values and yours will be different.
| Device | Continuous Wattage (W) | Surge Wattage (W) - Estimated |
|---|---|---|
| Refrigerator | 100 | 150 |
| Laptop | 45 | 60 |
| LED Lights (all) | 30 | 30 |
| CPAP Machine | 50 | 75 |
In this example, the total continuous wattage is 225W, but the total surge wattage is significantly higher at 315W. This higher value is crucial when determining the appropriate inverter size.
Choosing the Right Inverter: Type, Wattage, and Waveform
Type
Choosing the right type of inverter is crucial for a successful campervan setup. There are two primary types: pure sine wave and modified sine wave inverters. Pure sine wave inverters produce a smooth, consistent power output that closely mimics the electricity supplied by your home. This is ideal for sensitive electronics like laptops, smartphones, and medical devices, as it prevents damage caused by voltage fluctuations. Modified sine wave inverters, on the other hand, produce a less refined waveform that can be adequate for less sensitive appliances, but may lead to buzzing noises, reduced efficiency, and potential damage in more demanding devices. Consider your planned power needs; if you frequently use sensitive equipment, a pure sine wave inverter is recommended, even at a slightly higher cost.
Wattage
Determining the correct wattage is arguably the most important step in selecting your inverter. This figure represents the maximum power your inverter can output at any given time. It’s crucial to accurately assess your power needs to avoid overloading the inverter, which can lead to damage or premature failure. Start by listing all the devices you intend to run simultaneously. For each device, check its wattage rating (usually found on a label or in the device’s manual). Add these individual wattage ratings together. It’s always advisable to add a safety margin of at least 20%, or even more depending on the types of appliances being run (especially those with significant start-up surges like motors). For instance, if your total calculated wattage is 1000W, a 1200W to 1500W inverter would be a safer choice to account for the occasional power spike and ensure a comfortable operational buffer. Consider future upgrades; If you plan to expand your electrical setup in the future, an inverter with higher wattage capacity will save you future expenses and potential headaches.
Understanding Wattage and Surge Power
It’s essential to differentiate between continuous wattage and surge wattage. The continuous wattage, as previously discussed, represents the sustained power the inverter can provide. However, many devices, particularly motors (refrigerators, air conditioners, etc.), require a significantly higher power surge to start up. This surge is a temporary burst of power far exceeding the continuous wattage needed for regular operation. Always check the surge power requirements of your appliances and make sure the inverter’s surge capacity can handle the highest expected surge from any connected device. Failing to do so may result in the inverter shutting down or failing completely.
Choosing the Right Inverter Wattage: A Practical Example
Let’s say you plan to run a laptop (50W), a small refrigerator (150W surge, 75W continuous), and a couple of LED lights (10W each).
| Device | Continuous Wattage | Surge Wattage |
|---|---|---|
| Laptop | 50W | 50W |
| Refrigerator | 75W | 150W |
| LED Lights (2) | 20W | 20W |
| Total | 145W | 220W |
Based on this, a 300W inverter might seem sufficient, but considering the 20% safety margin and the refrigerator’s high surge requirement, a 500W or even a 600W inverter would be a much more reliable and safer choice.
Waveform
As mentioned earlier, inverters produce either pure sine wave or modified sine wave output. Pure sine wave inverters are the better choice due to their clean, consistent power delivery that’s suitable for all electronic devices. Modified sine wave inverters, while often cheaper, can cause operational issues or damage to sensitive electronics. It’s usually safer to opt for the pure sine wave, even if it carries a slightly higher upfront cost. The long-term reliability and protection of your valuable electronics far outweighs the marginal difference in price.
Safety First: Necessary Precautions Before Installation
Assessing Your Camper’s Electrical System
Before you even think about plugging in your shiny new power inverter, take a good, hard look at your camper’s existing electrical system. This isn’t about casually glancing around; it’s about a thorough assessment to ensure compatibility and safety. Start by identifying the camper’s battery type and capacity. Is it a standard lead-acid battery, a more modern AGM (Absorbent Glass Mat) battery, or something else entirely? Knowing this is crucial because different battery types have different charging characteristics and maximum output capabilities. Overloading your battery can lead to damage, reduced lifespan, and even a fire hazard.
Next, carefully inspect the existing wiring. Look for any signs of damage, fraying, or loose connections. Old, brittle wiring is a major fire risk, especially when dealing with the higher currents involved with inverters. If you find any problems, address them *before* installing the inverter. Repairing or replacing faulty wiring is essential to prevent short circuits and electrical fires. Don’t hesitate to consult a professional electrician if you’re unsure about the condition of your camper’s wiring. Their expertise will save you potential headaches and potentially dangerous situations down the road.
Finally, determine the amperage of your existing circuits. This information is usually found on the circuit breakers or fuses within your camper’s electrical panel. This will help you choose an appropriately sized inverter and ensure you don’t exceed the capacity of your camper’s wiring. Remember, running an inverter at or near its maximum capacity can lead to overheating and potential fire hazards. A correctly sized inverter and sufficient wiring will ensure reliable performance and long-term safety.
Choosing the Right Inverter
Selecting the correct inverter is paramount for safety and performance. Consider your power needs carefully. Make a list of all the appliances you plan to run simultaneously, noting their wattage requirements. Remember to add a safety margin to account for inrush current (the initial surge of power when an appliance turns on) – a factor often overlooked. Don’t forget to factor in the inverter’s efficiency rating; they aren’t 100% efficient, meaning they consume more power from the battery than they output.
Pay close attention to the inverter’s continuous and surge power ratings. The continuous rating refers to the sustained power the inverter can supply, while the surge rating indicates its ability to handle momentary high-power demands, like starting a motor. Mismatching these ratings with your appliance requirements can lead to overheating and potential failure. A properly selected inverter is fundamental for reliable and safe operation.
Secure Mounting and Wiring
The physical installation of your power inverter is critical to both its functionality and your safety. Never skimp on this step. Begin by selecting a secure mounting location. The inverter needs adequate ventilation to prevent overheating. Avoid areas where it might be exposed to moisture, excessive heat, or vibrations. Ensure the mounting location can support the inverter’s weight and is free from obstructions that could hinder airflow. Using appropriate hardware for secure mounting is crucial, preventing the inverter from shifting during travel or operation.
Wiring the inverter correctly is just as important. Use heavy-gauge wiring appropriate for the inverter’s amperage rating. This is non-negotiable for safety. Thin wires could overheat and create a fire hazard. Employ appropriate wire connectors and ensure all connections are tight and secure. Consult your inverter’s manual for detailed wiring diagrams and recommendations. Improper wiring will not only affect the inverter’s performance but might also create a substantial risk of electrical fire.
| Wire Gauge | Maximum Amperage (Recommended) | Notes |
|---|---|---|
| 8 AWG | 50 Amps | Suitable for most moderate-sized inverters |
| 6 AWG | 75 Amps | For higher-power inverters and applications |
| 4 AWG | 100 Amps + | Use for very high-power inverters |
Remember, always double-check all your connections before powering up the inverter. A careless mistake here can have disastrous consequences. Take your time, work meticulously, and if you have any doubts, seek professional assistance.
Selecting the Ideal Location for Your Inverter
Factors Influencing Inverter Placement
Choosing the right spot for your power inverter in your camper is crucial for both its performance and your safety. Several factors need careful consideration. Ventilation is paramount; inverters generate heat during operation, and insufficient airflow can lead to overheating and potential damage. Proximity to your battery bank is also key; shorter wire runs minimize voltage drop and improve efficiency. Finally, accessibility plays a role. You’ll want easy access to the inverter for maintenance or troubleshooting, but you also want to keep it out of the way to avoid accidental damage.
Ventilation: Keeping Your Inverter Cool
Heat is the enemy of any electronic device, and power inverters are no exception. Adequate ventilation prevents overheating, extending the lifespan of your inverter and ensuring it operates at peak efficiency. Look for locations with good airflow, such as near vents or windows. Avoid enclosed spaces or areas with poor circulation. Consider using a small fan to improve ventilation if necessary. Remember that the hotter the ambient temperature, the more crucial good ventilation becomes.
Proximity to the Battery Bank: Minimizing Voltage Drop
The distance between your inverter and your battery bank directly impacts performance. Long wire runs lead to voltage drop, reducing the power available to your appliances. This can manifest as inconsistent performance or even failure of sensitive electronics. Therefore, it’s essential to locate your inverter as close to the battery bank as practically possible. This minimizes the length of the heavy-gauge wiring required, reducing both resistance and cost.
Accessibility and Safety: A Balancing Act
While proximity to the battery and good ventilation are important, you also need to consider accessibility and safety. You’ll want to be able to easily reach your inverter for checks, maintenance, or troubleshooting. However, it’s equally important to keep it out of the way of foot traffic or potential damage from moving objects. Avoid placing the inverter in areas where it could be subjected to moisture or excessive vibration. Furthermore, consider the safety aspects; ensure it’s not in a location where children could easily access it. The ideal location offers a balance between easy access for maintenance and protection from the elements and accidental damage.
Table of Considerations for Inverter Placement
| Factor | Ideal Conditions | Things to Avoid |
|---|---|---|
| Ventilation | Well-ventilated area, near vents or windows | Enclosed spaces, areas with poor air circulation |
| Proximity to Battery | As close as practically possible to minimize wire length | Long wire runs leading to significant voltage drop |
| Accessibility | Easily accessible for maintenance but out of the way of traffic | Areas prone to damage, moisture, or vibration |
| Safety | Away from children and potential sources of damage | Locations where it could be easily knocked or damaged |
Securing Your Inverter: Mounting and Wiring
Once you’ve selected the optimal location, securing your inverter is crucial. Proper mounting ensures stability and prevents accidental dislodgement. Use appropriate mounting brackets and hardware suitable for the weight and size of your inverter. Pay close attention to the manufacturer’s instructions for mounting recommendations. Wiring is another critical aspect; use appropriately sized and rated wiring to connect your inverter to the battery bank and your AC outlets. Incorrect wiring can lead to overheating, fire hazards, and equipment damage. Employ appropriate wire management techniques to keep wiring organized and prevent accidental damage or shorts.
Wiring the Inverter: Connecting to Your Camper’s Battery
Choosing the Right Wiring Gauge
Selecting the appropriate wire gauge for your inverter installation is crucial for safety and performance. Undersized wires can overheat, potentially causing a fire, while oversized wires are unnecessarily expensive. The amperage draw of your inverter, along with the length of the wire run, dictates the necessary gauge. Consult the inverter’s manual for its maximum amperage draw – this information is usually prominently displayed. You’ll also need to factor in any potential voltage drop over the length of the wire. Longer runs require thicker (lower gauge number) wires to minimize voltage loss. Online calculators are readily available to assist in determining the correct wire gauge based on amperage, voltage, and wire length. Remember, it’s always better to err on the side of caution and choose a slightly heavier gauge wire than what’s minimally required.
Preparing the Battery and Wiring
Before connecting anything, disconnect the negative terminal of your camper’s battery to prevent accidental shorts. This is a fundamental safety precaution that should always be followed when working with automotive electrical systems. Clean the battery terminals thoroughly using a wire brush to remove any corrosion. Corrosion can significantly impede current flow and increase resistance, leading to heat buildup and potential damage. Once clean, apply a protective anti-corrosion coating to the terminals for long-term performance. This will help maintain a solid connection and prevent future corrosion issues.
Connecting the Inverter’s Positive Lead
Locate the positive (+) terminal on your inverter. This is usually clearly marked. Use the appropriately sized wire and attach it securely to this terminal, using an appropriately sized ring terminal crimped onto the end of the wire. Ensure the connection is tight to prevent any loose connections, which are a common cause of voltage drops and potentially dangerous overheating. A properly crimped ring terminal makes for a far superior and safer connection compared to simply wrapping the wire around the terminal. Tighten the terminal screw firmly but avoid over-tightening, which could damage the terminal or the inverter.
Connecting the Inverter’s Negative Lead
Repeat the process for the negative (-) terminal on the inverter. Again, use an appropriately sized wire with a properly crimped ring terminal, and secure it firmly to the negative terminal on the inverter. It is important to use the same gauge wire on the positive and negative connections for balanced performance. Never connect the negative lead directly to the chassis of the vehicle unless your inverter specifically instructs you to do so.
Securing Wiring and Connections: A Deep Dive
Once the positive and negative leads are connected to the inverter, it’s time to run them to the battery. Use appropriate cable management techniques such as zip ties or cable clamps to keep the wires neatly organized and secured. Avoid sharp bends or kinks in the wires, as these can damage the insulation and potentially create short circuits. For longer runs, consider using conduit or protective sleeving to protect the wires from abrasion and potential damage. Before connecting to the battery, carefully inspect all crimped connections to ensure they are secure. A poorly crimped connection can cause overheating and be a fire hazard. The crimped connection should be solid and not easily pulled apart. Consider using a crimping tool that is designed for the size and type of wire and connector you are using. Finally, connect the positive wire to the positive terminal of the battery and the negative wire to the negative terminal of the battery. Double-check all connections before powering on the inverter. Ensure that all connections are tight and that there is no chance of the wires shorting out. Consider using a fuse or circuit breaker inline close to the battery, as an added safety measure, to protect against overcurrent situations. Refer to your inverter’s manual for the correct fuse rating.
| Wire Gauge | Maximum Amperage (Approximate) | Recommended Use Cases |
|---|---|---|
| 8 AWG | 50 Amps | Inverter installations up to 5000W, moderate length runs |
| 6 AWG | 75 Amps | Higher power inverters, longer runs or installations with multiple heavy-duty appliances |
| 4 AWG | 100 Amps + | High-power inverters exceeding 6000W, long runs or multiple high-draw appliances |
Testing Your Installation
After making all connections, carefully reconnect the negative battery terminal. Turn on your inverter and test it with different loads to ensure everything is working correctly. Monitor the temperature of the wires and connections for excessive heat buildup—this is an indicator of a potential problem. If you detect any unusual sounds, smells, or excessive heat, immediately turn off the inverter and investigate the issue before continuing.
Grounding the Inverter for Optimal Performance and Safety
Understanding the Importance of Grounding
Grounding your power inverter in your camper is crucial for both performance and safety. A properly grounded inverter provides a safe path for fault currents to flow back to the earth, preventing electrical shocks and protecting your sensitive electronics. Without a proper ground, stray voltage can build up, leading to malfunctions, damage to your equipment, and even fire hazards. The ground connection acts as a safety net, diverting potentially dangerous electrical energy away from you and your camper’s inhabitants.
Identifying Your Camper’s Grounding System
Before you begin, it’s important to understand your camper’s existing grounding system. Most RVs and campers utilize a chassis ground, meaning the metal frame of the vehicle itself acts as the ground point. However, some setups might have a dedicated ground wire connected to a ground rod or other grounding point. Carefully inspect your camper’s wiring and electrical system to determine the best approach for grounding your inverter. Consult your camper’s wiring diagram if available – it will often highlight grounding points.
Choosing the Right Grounding Wire
Selecting the correct gauge of grounding wire is essential for safety. Using a wire that’s too thin can lead to overheating and potential fire hazards. The required gauge depends on the inverter’s amperage rating. Consult your inverter’s manual for specific recommendations, but generally, a heavier gauge wire (smaller number) is preferred for higher-wattage inverters. Ensure the wire is appropriately insulated and rated for the operating temperature and voltage of your system. Copper is the standard material for grounding wires due to its excellent conductivity.
Connecting to the Chassis Ground (Common Method)
The most common grounding method involves connecting your inverter directly to the camper’s chassis. Find a clean, unpainted metal surface on the frame of your camper. Use a heavy-duty bolt or screw to secure a grounding lug to the chassis. Crimp the grounding wire to this lug, ensuring a tight and secure connection. Never use paint or other insulating materials on the grounding point. Proper cleaning of the metal surface before attaching the grounding lug will ensure a good electrical contact.
Alternative Grounding Methods
While chassis grounding is usually sufficient, alternative methods exist, particularly if your camper has a dedicated ground rod. In such cases, you might need to run a grounding wire from your inverter to this ground rod. Always follow local electrical codes and regulations when installing your ground. If uncertain, consult a qualified electrician. Using a dedicated ground rod provides a lower-impedance path to earth, further enhancing safety.
Grounding Wire Connections: A Detailed Guide
Creating a robust and reliable ground connection is paramount. A loose or poorly made connection can compromise the entire system’s safety and performance. Here’s a step-by-step guide:
| Step | Action | Important Considerations |
|---|---|---|
| 1 | Clean the grounding point on the camper’s chassis thoroughly using a wire brush or sandpaper to remove any paint, rust, or dirt. Ensure a clean, bare metal surface is exposed for optimal conductivity. | Thorough cleaning is essential for a low-resistance connection. |
| 2 | Attach a grounding lug (ring terminal or similar) to the end of your grounding wire using a proper crimping tool. Never rely on twisting and soldering alone; these methods are insufficient for high-current applications and are unreliable over time. A crimped connection is crucial for secure, vibration-resistant conductivity. | Use the correct size crimping tool for your wire and lug size. A poorly crimped lug will lead to a poor connection and potential overheating. |
| 3 | Securely attach the grounding lug to the cleaned chassis ground point using a suitable bolt, screw, or other appropriate fastener. Ensure the connection is tight and there’s no play or movement in the connection. | Use a washer under the nut to distribute the clamping force and prevent damage to the lug. Torque the fastener to the manufacturer’s specifications. |
| 4 | Inspect the connection for any signs of looseness or damage. Re-tighten as needed. Check for any corrosion or oxidation after some time in operation and maintain or replace as needed. | Regular inspection is vital for maintaining a safe and effective ground. |
| 5 | Finally, connect the other end of the grounding wire securely to your inverter following the manufacturer’s instructions. | Verify this connection is just as tight and secure as the chassis connection. |
By meticulously following these steps, you’ll ensure a safe, reliable, and efficient ground for your camper’s power inverter, maximizing both its performance and your safety.
Securing the Inverter: Mounting and Cable Management
Choosing the Right Mounting Location
Before you even think about drilling holes, carefully consider where to mount your power inverter. Optimal placement balances accessibility, ventilation, and safety. Avoid locations near heat sources like the engine or exhaust, as excessive heat can damage the inverter and shorten its lifespan. A well-ventilated area, such as a compartment with good airflow, is ideal. Think about the weight of the inverter; ensure the mounting surface can adequately support it. Consider proximity to your battery and the AC outlets you intend to power. Remember, easy access to the inverter is crucial for maintenance and troubleshooting.
Mounting the Inverter
Once you’ve selected the perfect spot, prepare the mounting surface. Clean the area thoroughly to ensure a secure bond. Depending on the inverter’s mounting hardware, you may need to drill holes or use existing fasteners. Consult your inverter’s installation manual for specific instructions; this is crucial to avoid voiding the warranty and ensuring safe and effective installation. Pay close attention to the recommended spacing of mounting bolts and the type of fasteners required. If using screws, consider using washers to distribute the clamping force and prevent damage to the inverter casing.
Cable Management: The Unsung Hero
Neatly managed cables are essential for safety and aesthetics. Loose wires are a tripping hazard and can be damaged easily, potentially leading to electrical shorts. A well-organized cable system improves the overall look and feel of your campervan’s interior. Begin by planning your cable routing before starting the installation. Consider using cable ties, zip ties, or other cable management tools to keep wires bundled and organized. Avoid sharp bends or kinks in the cabling which could restrict current flow and ultimately damage the wiring.
Securing the Inverter’s Wiring
The wiring connecting the inverter to the battery is a critical component. Use appropriately sized, high-quality wiring, ensuring it’s rated for the inverter’s amperage. Loose or improperly connected wires can lead to overheating, fires, and potentially significant damage. Use appropriately sized fuses, both close to the battery and near the inverter to protect the system from overloads. Use heavy-duty wire loom to protect the wiring from abrasion and the elements. Ensure the wiring is securely fastened to prevent it from moving or vibrating. Routing cables through existing channels, if available, will maintain a clean and organized system.
Protecting Your Wiring Harness
Once the wiring is routed and secured, consider using additional protection, such as split conduit or corrugated tubing, to protect the cabling from potential damage. This added layer of protection is particularly important in areas where the cables might be subject to abrasion, vibration, or exposure to moisture. It’s a worthwhile investment for the long-term integrity of your installation.
Grounding Your Inverter Properly
Grounding your inverter is vital for safety and optimal performance. A proper ground connection provides a path for fault currents to safely flow to earth, preventing electrical shocks and equipment damage. The inverter’s manual will detail the correct grounding procedure. Generally, this involves connecting a thick, low-resistance wire from the inverter’s grounding terminal to a suitable grounding point in the campervan’s chassis. Ensure the grounding point is clean and free from paint or corrosion to guarantee optimal conductivity. A poor ground connection can lead to erratic behavior from the inverter or worse, create a shock hazard.
Choosing the Right Fuses and Breakers
Protecting your campervan’s electrical system is paramount. This is achieved through the correct application of fuses and circuit breakers. Fuses are designed to melt and break the circuit if there’s an excessive current flow, preventing damage to the inverter and wiring. Circuit breakers are similar but offer reusable protection. Always select fuses and breakers that are rated for the correct amperage of your inverter and the circuits it supplies. Refer to the inverter’s specifications to determine the appropriate amperage rating. Undersizing fuses and circuit breakers can lead to overheating and fires, while oversizing them may not provide adequate protection. Ensure that your chosen fuses and circuit breakers are readily accessible for inspection and replacement. A well-organized fuse box, clearly labeled, is essential for quick identification and replacement of blown fuses in the event of an overload.
| Fuse/Breaker Type | Amperage Rating | Location | Notes |
|---|---|---|---|
| Inverter Input Fuse | (Specify based on inverter manual) | Near battery | High-amperage slow-blow fuse |
| Inverter Output Breaker(s) | (Specify based on inverter manual and circuit loads) | Near inverter | Multiple breakers for different circuits may be necessary |
| Additional Circuit Breakers | (Specify based on circuit loads) | Fuse Box | Protect individual circuits (lights, appliances, etc.) |
Connecting Your Appliances: Understanding Input and Output
Matching Your Appliances to Your Inverter
Before you even think about wiring, it’s crucial to understand the power demands of your camper appliances. Inverters, simply put, convert DC (direct current) power from your camper’s battery into AC (alternating current) power that most household appliances use. Each appliance has a specific power rating, measured in watts (W) or amps (A) at a certain voltage (usually 120V AC). Your inverter, in turn, has a specified wattage capacity – this is the maximum power it can safely deliver. If you try to run appliances that draw more power than your inverter can handle, you’ll likely trip a breaker or, worse, damage the inverter.
Calculating Your Power Needs
To avoid overloading your inverter, carefully add up the wattage of all appliances you intend to use simultaneously. Remember to account for surge power – the initial power spike when an appliance starts up. This surge can be significantly higher than the running wattage. For example, a microwave might list a running wattage of 1000W, but its surge wattage could easily be 1500W or more. Consider a safety margin of at least 20% when calculating your total power needs. If your appliances total 1500W, aim for an inverter with at least an 1800W capacity.
Understanding Inverter Wattage Ratings
Inverter specifications often list two wattage ratings: continuous and surge. The continuous wattage is the sustained power the inverter can deliver for extended periods. The surge wattage represents the peak power the inverter can handle for short bursts, like those initial power surges mentioned earlier. Don’t confuse these ratings! Choosing an inverter based solely on the surge rating is a recipe for disappointment and potential damage. Prioritize the continuous rating when selecting an inverter suitable for your camper’s needs.
Input Voltage and Current
Your inverter’s input is the DC power it draws from your camper’s battery bank. This is typically 12V or 24V DC, depending on your system. The inverter’s input current rating indicates how much current it draws from the battery. A higher input current means a greater load on your battery system. It’s essential to ensure your battery bank and wiring can comfortably handle the input current demands of your chosen inverter.
Output Voltage and Frequency
The output of your inverter is the AC power it supplies to your appliances. This is typically 120V AC (or 230V in some regions) at a frequency of 60Hz (or 50Hz). Confirm that your appliances are compatible with the voltage and frequency provided by your inverter. Mismatched voltage or frequency can cause damage to your appliances.
Connecting Your Appliances Safely
Always use heavy-duty extension cords rated for the wattage of your appliances. Avoid overloading circuits by plugging in too many appliances simultaneously. Never connect appliances that draw more power than the inverter’s continuous rating allows. Make sure all connections are secure and properly grounded to prevent electrical shocks and fires.
Appliance Compatibility Chart
The compatibility of your appliances with your inverter depends primarily on their power consumption and the inverter’s capacity. Before connecting, always consult the appliance’s specifications to determine its wattage and current draw. It is important to check if the appliance is compatible with pure sine wave or modified sine wave inverters.
| Appliance | Wattage (W) | Surge Wattage (W) | Inverter Type Needed |
|---|---|---|---|
| Laptop | 50 | 75 | Modified sine wave |
| Phone Charger | 15 | 20 | Modified sine wave |
| Microwave | 1000 | 1500 | Pure sine wave |
| Hair Dryer | 1200 | 1800 | Pure sine wave |
| Coffee Maker | 800 | 1200 | Pure sine wave |
Troubleshooting Common Issues
If your appliances aren’t working, first check the inverter’s circuit breaker and ensure the battery is adequately charged. If the problem persists, check all connections and ensure your inverter is adequately sized for the appliances in use. Consider using a power meter to monitor the power consumption of your appliances to avoid overloading the inverter. A pure sine wave inverter is recommended for sensitive electronics, while a modified sine wave inverter might suffice for less sensitive loads. Finally, if you’re still having trouble, consult a qualified electrician.
Testing and Troubleshooting Your Newly Installed Inverter
Initial Power-Up and Load Testing
Before connecting any significant loads, perform a preliminary test. Connect a small, known load – such as a 12V LED light or a small fan – to the inverter’s AC output. Turn on the inverter. If it functions correctly, the load should operate normally. If not, immediately disconnect the load and proceed to the troubleshooting steps. Note the inverter’s temperature; it should not be excessively hot to the touch.
Checking Input Voltage
Verify the DC input voltage to the inverter is within the manufacturer’s specified range. Low input voltage is a common cause of inverter malfunction. Use a multimeter to measure the voltage directly at the inverter’s input terminals with the inverter OFF. Compare this reading to your camper’s battery voltage. Significant discrepancies may indicate a problem with your battery, wiring, or fuses.
Output Voltage and Waveform Inspection
Using a multimeter capable of AC voltage measurements, check the AC output voltage of the inverter. This should match the nominal output voltage specified on the inverter (usually 120V in North America). Also, ideally, use an oscilloscope to inspect the waveform. A clean sine wave is desirable; significant distortion could indicate internal issues within the inverter. However, a multimeter can suffice for basic voltage verification.
Testing Various Loads
Gradually introduce progressively larger loads to the inverter to determine its capabilities and identify potential problems under stress. Start with small appliances (e.g., a phone charger, a laptop) and then add larger ones (e.g., a microwave, a coffee maker) one at a time. Observe the inverter’s performance, paying attention to any unusual noises (buzzing, humming), overheating, or voltage drop. Make a note of the maximum continuous load your inverter can handle reliably without issues.
Overload Protection
Intentionally overload the inverter to test its overload protection system. Connect a load that significantly exceeds the inverter’s rated capacity. The inverter should automatically shut down. After a short delay, attempt to restart the inverter. If it fails to restart, check the input voltage and fuses as outlined above. It should only restart once the overload is removed.
Fuse and Circuit Breaker Checks
Regularly inspect both the DC input fuses and the AC output circuit breakers on your inverter. Blown fuses or tripped breakers could indicate problems with the inverter or excessive load demands. Replace blown fuses with the correct amperage rating; ensure to disconnect the battery or the AC input before doing so. Reset any tripped circuit breakers, but only once the reason for the overload has been addressed.
Grounding and Wiring Integrity
Ensure proper grounding of the inverter and all connected appliances. A poor ground connection can lead to safety hazards and erratic inverter operation. Carefully inspect all wiring connections, looking for loose or corroded terminals. Tighten any loose connections and clean any corroded areas. A damaged wire could lead to dangerous shorts or reduce functionality. The DC input wires should be appropriately sized for the current draw.
Thermal Management
Monitors the inverter’s operating temperature, particularly during extended periods of use. Excessive heat can damage the inverter and shorten its lifespan. Ensure adequate ventilation around the inverter. Consider adding a cooling fan if the inverter’s operating temperature consistently rises above the manufacturer’s recommendations. In some cases, mounting the inverter in a well-ventilated location might significantly improve cooling. The heat sink might need cleaning from dust, especially in dusty environments.
Troubleshooting Common Inverter Problems: A Detailed Guide
Let’s dive into some common inverter issues and their solutions. Suppose your inverter isn’t powering on. First, verify the battery is adequately charged. Use a multimeter to measure the battery voltage. A low battery might not provide enough power to start the inverter. Next, check all connections and ensure the DC input fuse hasn’t blown. If the problem persists, inspect the inverter’s wiring harness for any broken or loose wires. Consider checking the DC input circuit breaker or fuse if one is present before your inverter.
If the inverter turns on but doesn’t provide power to your appliances, check the AC output voltage using a multimeter. A low or absent output voltage usually indicates an internal problem requiring professional repair or replacement. Also, check the AC output circuit breaker. If it is tripped, find and address the overload condition before resetting the breaker. Make sure the appliance is not faulty. If it’s consistently malfunctioning, the inverter might be undersized for the loads you are attempting to run.
Lastly, intermittent power could stem from loose connections, corroded wiring, or a failing internal component within the inverter. Start with thorough visual inspection of all connections, paying close attention to any corrosion. If the issue continues, it warrants professional attention.
| Problem | Possible Cause | Solution |
|---|---|---|
| Inverter won’t turn on | Low battery voltage, blown fuse, loose connections | Charge battery, replace fuse, tighten connections |
| Inverter turns on, but no output | Internal fault, tripped breaker, low input voltage | Check AC output, reset breaker, check battery voltage |
| Intermittent power | Loose connections, corroded wiring, internal failure | Inspect connections, clean wiring, seek professional help |

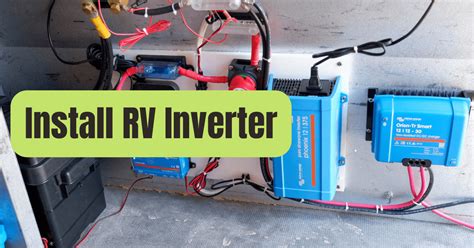

Proper Installation of a Power Inverter in a Camper
Installing a power inverter in a camper requires careful planning and execution to ensure both safety and optimal performance. The process begins with a thorough assessment of power needs. Determine the total wattage of the appliances you intend to run simultaneously, selecting an inverter with a sufficient wattage rating and surge capacity. Underestimating this requirement can lead to overloading and potential damage to the inverter or your camper’s electrical system. Always select an inverter with an appropriate form factor (pure sine wave is recommended for sensitive electronics) and ensure it’s appropriately sized for the available space within your camper.
Next, establish a secure mounting location. The inverter should be positioned in a well-ventilated area, away from direct sunlight and sources of moisture. Secure mounting is paramount to prevent movement or vibrations during travel. Wiring the inverter correctly is crucial. A properly sized and appropriately protected wiring harness is essential. Connect the inverter directly to the vehicle’s battery using heavy-gauge wire. Never bypass any safety fuses or circuit breakers. Proper grounding is also essential to prevent electrical shocks and ensure the safety of your equipment.
After installation, thorough testing is vital. Connect your appliances and test the inverter under various load conditions. Monitor the inverter’s temperature and ensure it operates within its specified parameters. Regular inspection is advised to identify potential problems before they lead to more significant issues. Failure to address any faults promptly could result in damage to the inverter, other electrical components, or even create a fire hazard. Finally, refer to the manufacturer’s instructions for specific guidance tailored to your chosen inverter model. This will help to ensure a safe and successful installation.
People Also Ask: Power Inverter Installation in a Camper
What type of wire should I use to wire my power inverter?
Choosing the Correct Wiring Gauge
The wire gauge required for your power inverter depends entirely on the inverter’s amperage draw and the distance from the battery to the inverter. Using a wire gauge that is too small can lead to overheating and potential fire hazards. Consult a qualified electrician or refer to the inverter’s manufacturer’s specifications for the correct gauge. Always use heavy-gauge, marine-grade wire rated for the specific amperage and voltage.
How do I protect my power inverter from overheating?
Preventing Overheating
Overheating is a common concern with power inverters. To prevent this, ensure the inverter is properly mounted in a well-ventilated area, away from direct sunlight and heat sources. Adequate airflow is crucial. Furthermore, avoid overloading the inverter by exceeding its rated wattage. Regularly inspect the inverter for signs of excessive heat, and if concerns arise, consult the manufacturer’s instructions or a qualified technician.
Can I run my air conditioner on a power inverter?
Air Conditioner Compatibility
Running an air conditioner (AC) unit off a power inverter is generally not recommended due to the high power demands of AC units. Most portable AC units require far more power than even the largest portable inverters can consistently supply. Attempting to run an AC unit on an insufficient inverter can lead to damage to the inverter, the AC unit itself, and even your vehicle’s electrical system. Instead, consider dedicated camper-specific AC solutions designed for that purpose.
Should I use a pure sine wave or modified sine wave inverter?
Sine Wave Inverter Types
Pure sine wave inverters produce a smoother, cleaner power output that’s ideal for sensitive electronics like laptops, smartphones, and certain medical devices. Modified sine wave inverters, while generally less expensive, produce a less stable waveform that can damage sensitive electronics. For general use in a camper, a pure sine wave inverter is generally recommended, particularly if you plan on using many electronic devices.
